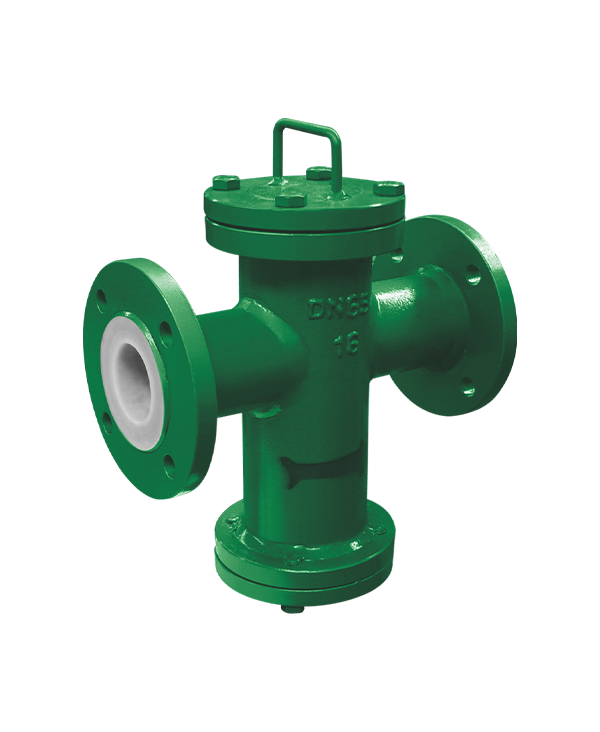

Fluorine-lined filter
Other Series

Fluorine-lined filter

Diameter: DN25-DN250
Pressure: PN6-PN16
Body material: WCB, CF8, CF8M, CF3, CF3M
Valve cover material: Q235, 304, 316, 304L, 316L
Structure length: GB/T 12221
Flange standard: HG/T 20592, ASME B16.5
Connection mode: flange​

DN25-DN250 View Details

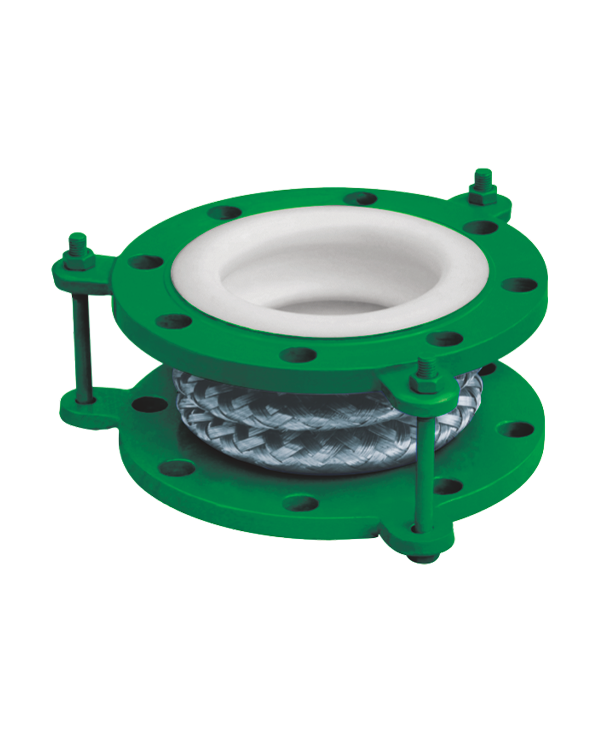

Lined with fluorine compensator
Other Series

Lined with fluorine compensator

Nominal diameter: DN40-DN1600
Nominal pressure: PN6-PN0.1
Wave count: 1 wave, 3 waves, 4 waves, 5 waves, 6 waves
Flange size: JB78
Structure length: Q/JL 13-99​

DN40-DN1600 View Details

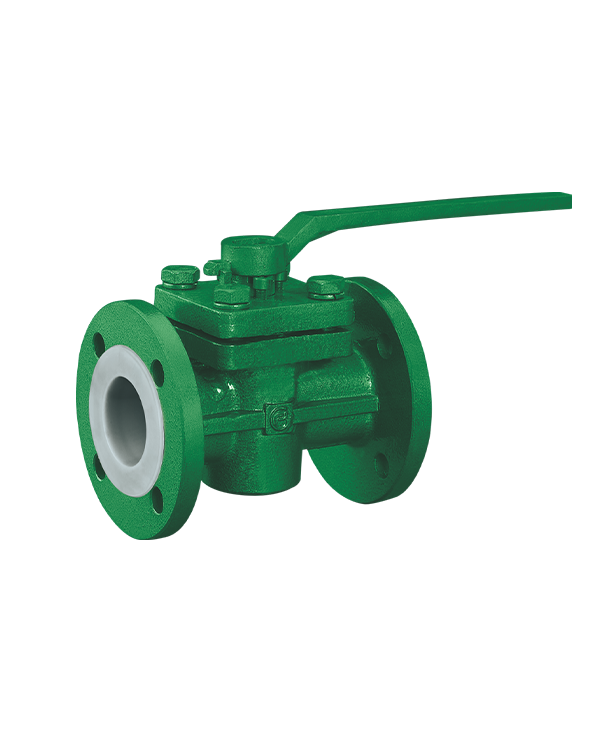

Fluorine lined plug valve
Other Series

Fluorine lined plug valve

Nominal diameter: DN15-DN300
Nominal pressure: PN10-PN16
Body material: WCB, CF8, CF8M, CF3, CF3M
Spool material: WCB, CF8, CF8M, CF3, CF3M
Connection mode: flange
Packing: PTFE
Flange standard: HG/T 20592
Structure length: GP/T12221
Driving mode: manual, worm gear, electric, pneumatic​

DN15-DN300 View Details

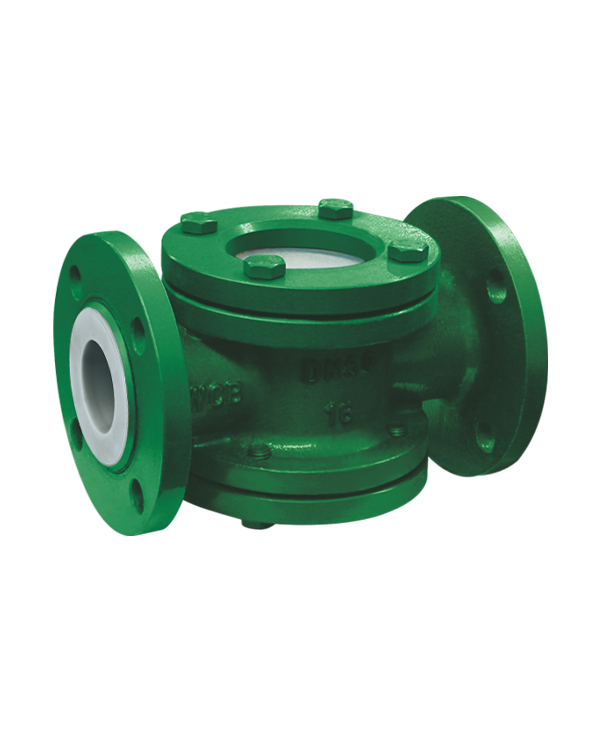

Fluorine-lined straight-through lens
Other Series

Fluorine-lined straight-through lens

Nominal diameter: DN25-DN200
Nominal pressure: PN6
Body material: WCB, CF8, CF8M, CF3, CF3M
Glass material: tempered, high borosilicate, quartz
Connection mode: flange
Flange standard: HG/T 20592
Structure length: HG/T 20592​

DN25-DN200 View Details

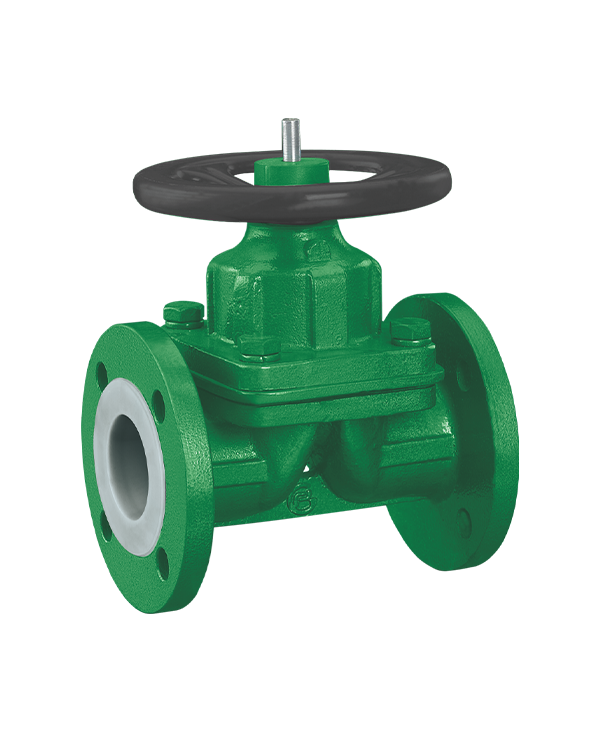

Flange connection diaphragm valve
Other Series

Flange connection diaphragm valve

Nominal diameter: DN15-DN300
Nominal pressure: PN6-PN16
Body material: WCB, CF8, CF8M, CF3, CF3M
Valve cover material: WCB, CF8, CF8M, CF3, CF3M
Disc material: WCB, CF8, CF8M, CF3, CF3M
Valve stem material: 2Cr13, 304,316,316L
Connection mode: flange
Flange standard: HG/T 20592, ASME B16.5
Structure length: GP/T12221​

DN15-DN300 View Details

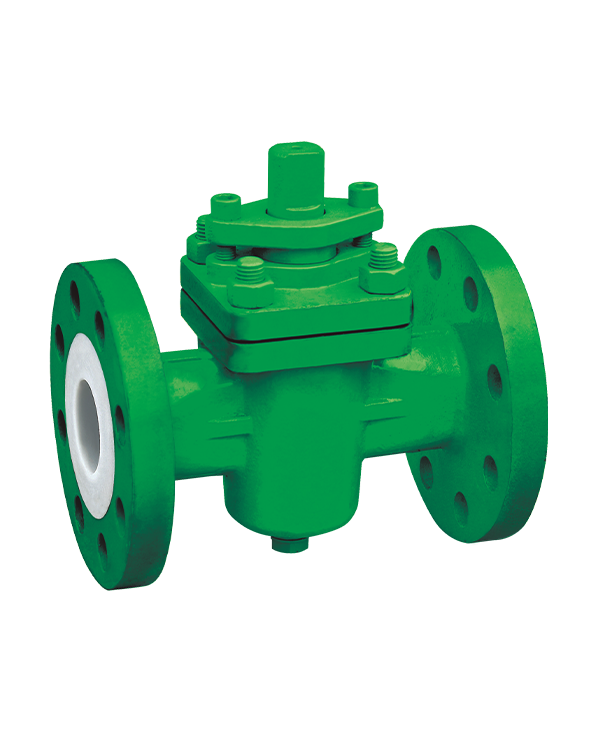

Flanged plug valve(Fully lined, sleeve type)
Other Series

Flanged plug valve(Fully lined, sleeve type)

Nominal diameter: DN15-DN300
Nominal pressure: PN6-PN16
Body material: WCB, CF8, CF8M, CF3, CF3M
Valve cover material: WCB, CF8, CF8M, CF3, CF3M
Disc material: WCB, CF8, CF8M, CF3, CF3M
Valve stem material: 2Cr13, 304,316,16 L
Connection mode: flange
Flange standard: HG/T 20592, ASME B16.5
Structure length: GP/T12221
Drive mode: handle, bevel gear, pneumatic, electric​

DN15-DN300 View Details

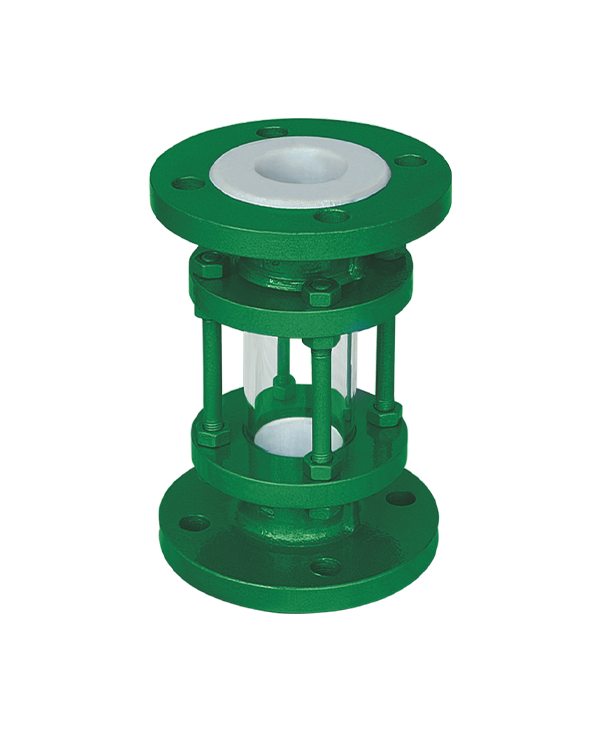

Fluorine lined eye cup
Other Series

Fluorine lined eye cup

Nominal diameter: DN15-DN200
Nominal pressure: PN6-PN16
Body material: WCB, CF8, CF8M, CF3, CF3M
Glass material: tempered, high borosilicate, quartz
Connection mode: flange
Structure length: HG/T 20592
Flange standard: HG/T 20592
Pressure test: GB/T 13927​

DN15-DN200 View Details

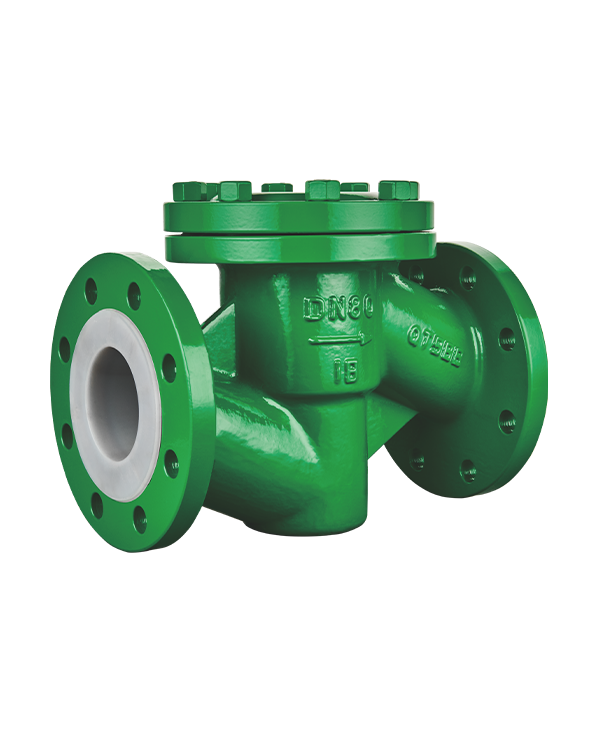

Fluorine lined check valve
Check Valve Series

Fluorine lined check valve

Diameter: DN15-DN450
Pressure: PN10-PN25
Material: Gray cast iron, carbon steel, stainless steel, ultra-low carbon stainless steel +PTFE(F4), PCTFE(F3), FEP(F46), PFA, PO
Standard: GB/T 12233
Connection mode: flange​

DN15-DN450 View Details
 1 2 3 4 Next
Core Advantages

Defining Standards with Quality

From materials to craftsmanship, every detail pursues excellence

Corrosion-Resistant Materials

Stainless steel, duplex steel, nickel-based alloys, suitable for strong acid and alkali conditions

Precision Machining

5-axis simultaneous machining centers ensure micron-level precision on every sealing surface

100% Factory Testing

Full pressure testing and leak detection, committed to zero-defect delivery

Global Service

Covering 50+ countries and regions, 7×24 technical support
